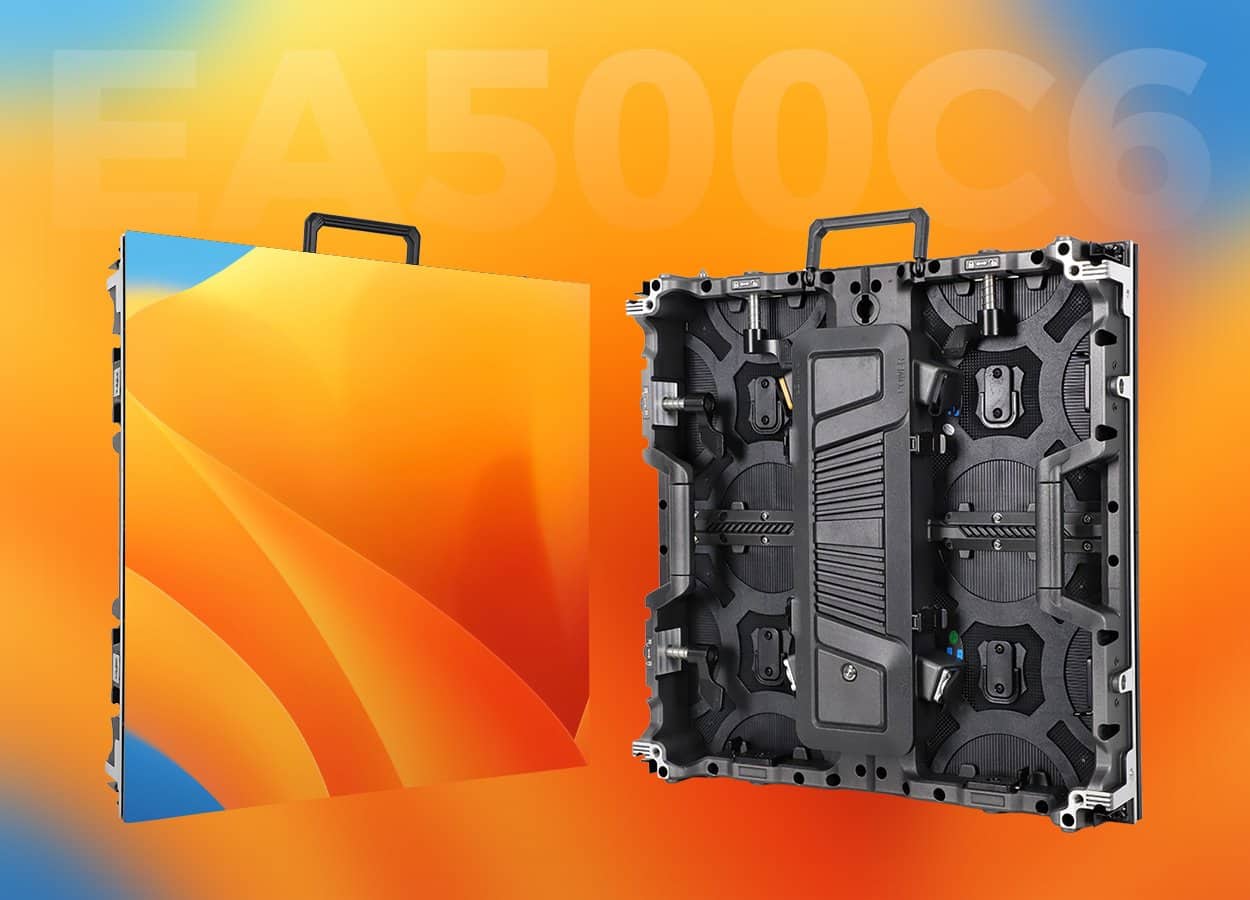

室内外Z500租赁LED显示屏

Z500租赁LED显示屏采用快锁设计，支持弯曲安装，安装方便快捷。箱体采用压铸铝材质，所有螺丝和快锁均采用不锈钢材质，更加坚固耐用。是理想的租赁箱体。

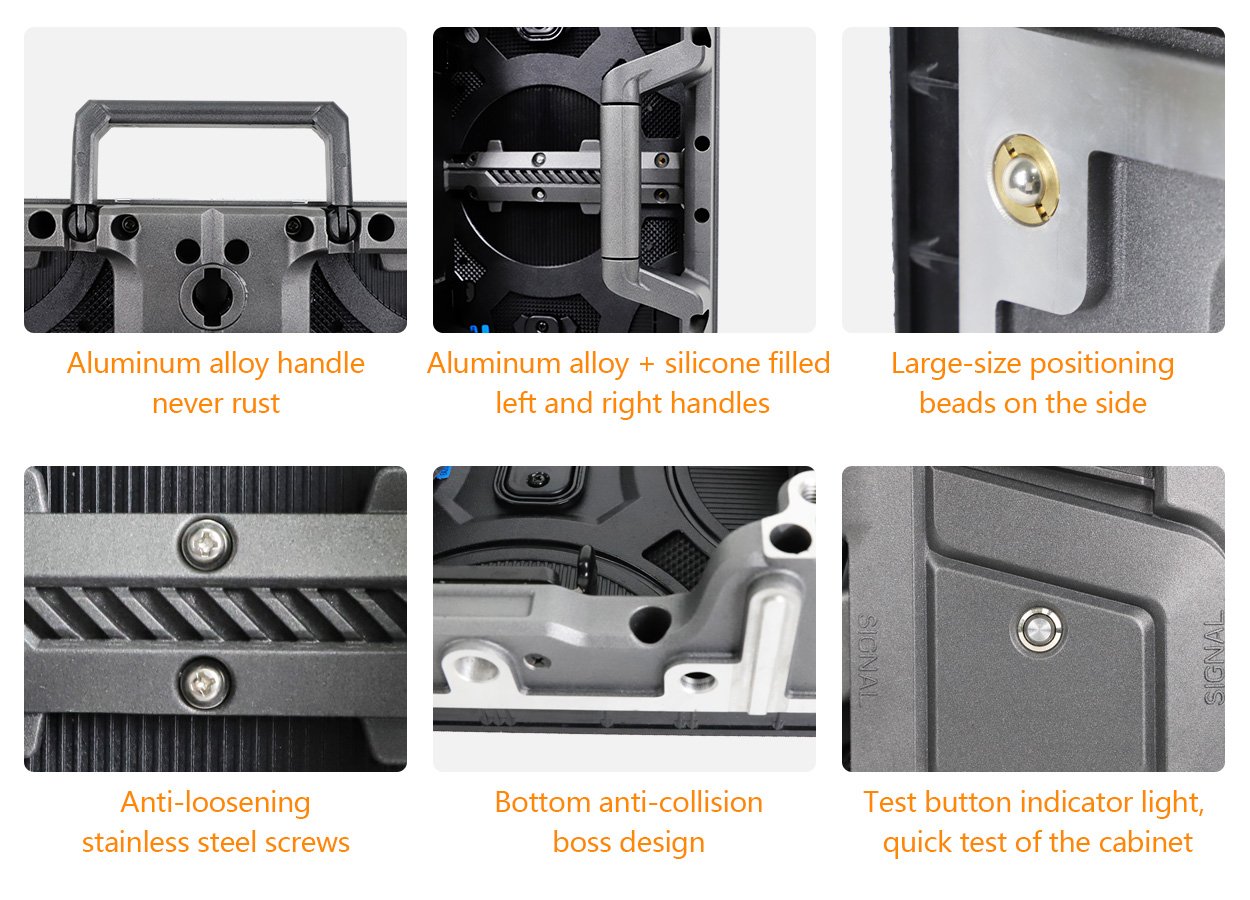

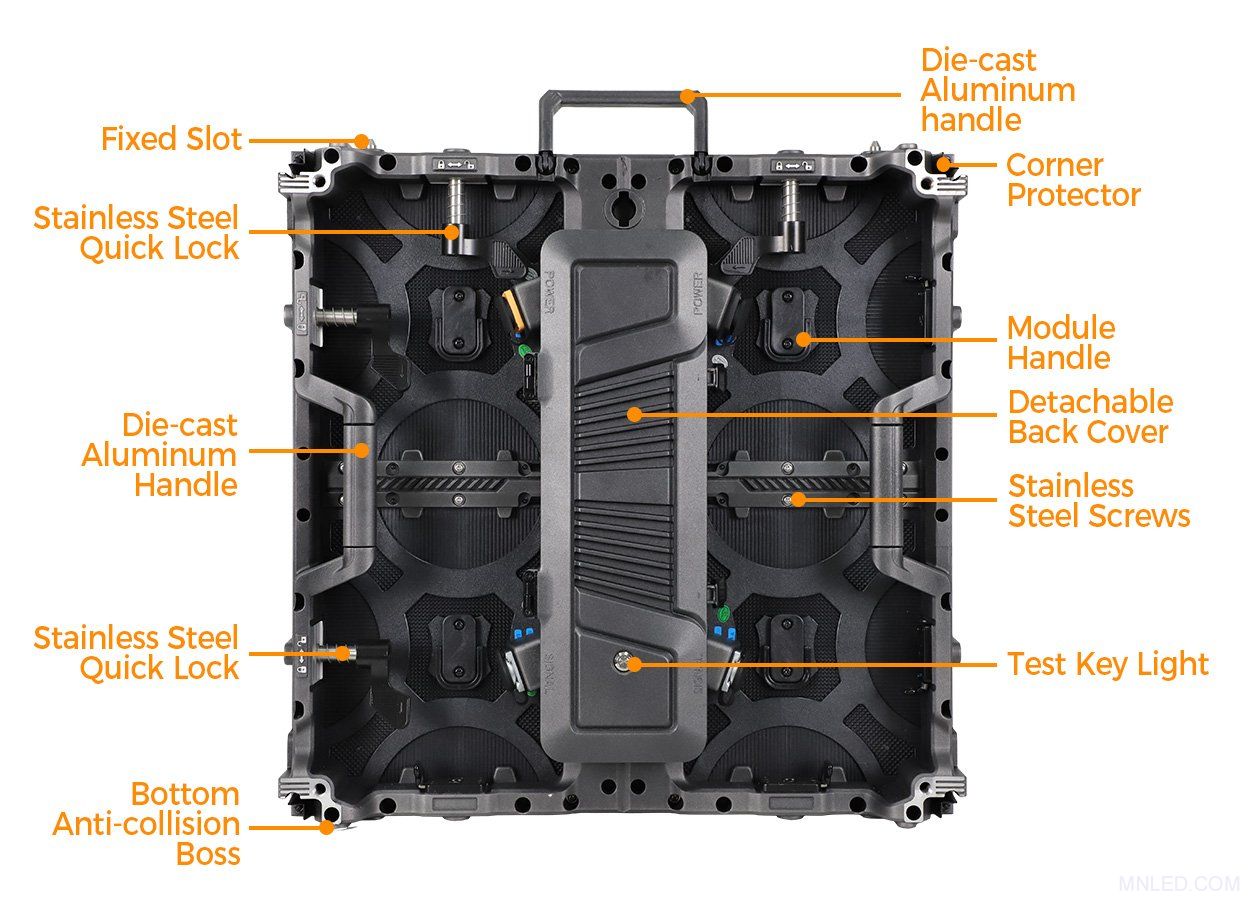

精致的箱体设计

高品质的产品体现在每一个细节上。不锈钢锁、铝合金拉手、护角、不锈钢螺丝、定位珠等。

详细信息显示

Z500 是一款高品质 LED 显示屏，经得起近距离观察，品质卓越。

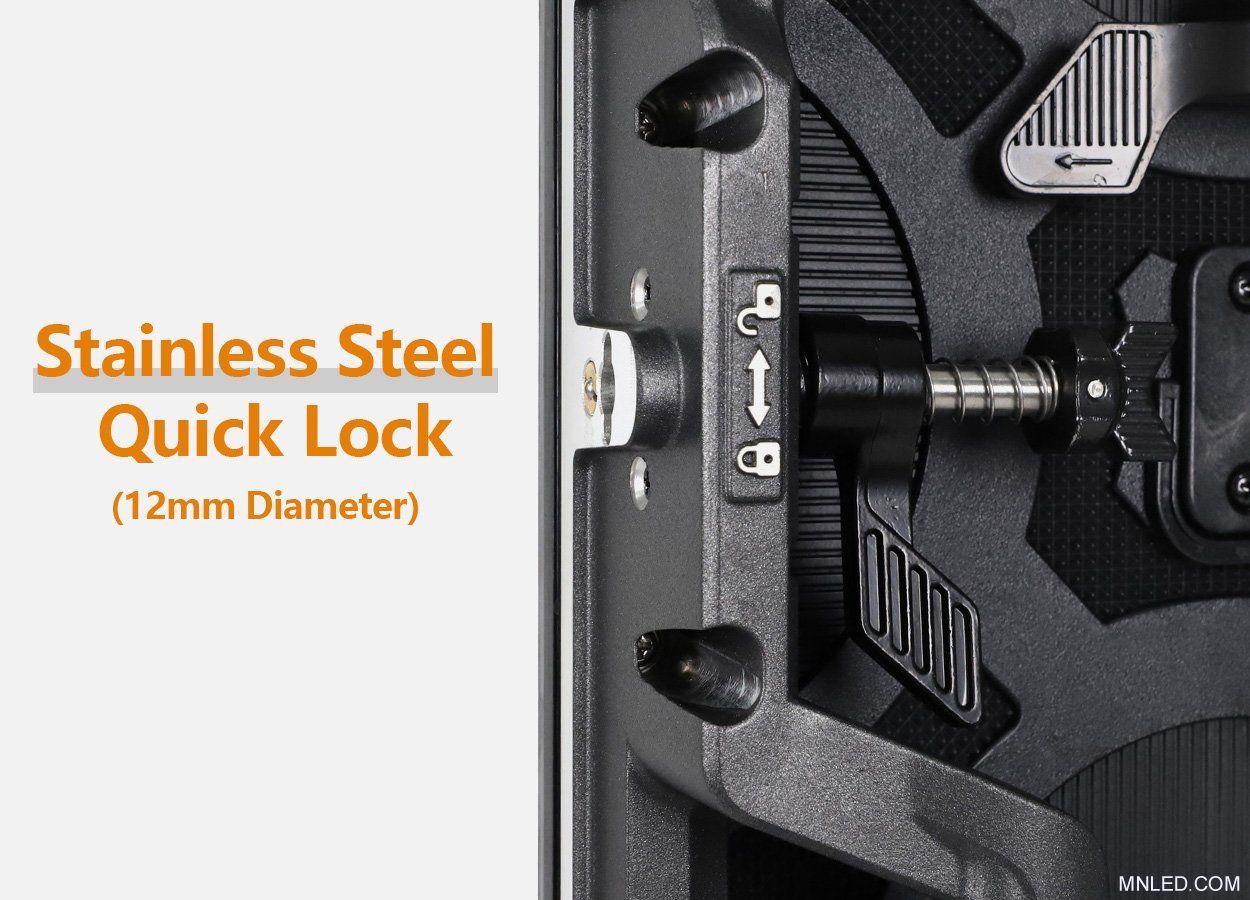

快速安装

Z1000系列LED屏幕的左侧和顶部有两个快速锁，以确保更快的组装和更好的屏幕平整度。

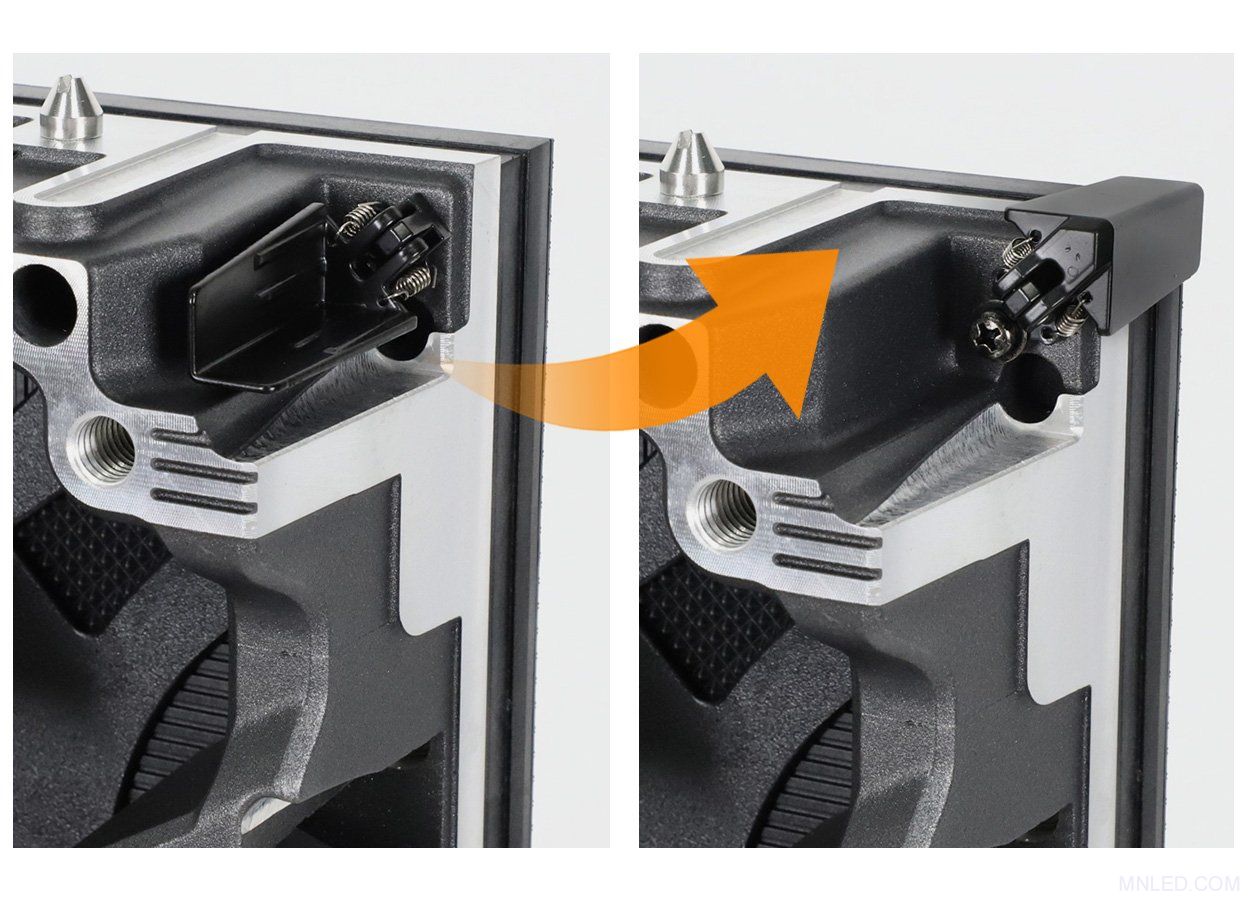

LED 护角

Z1000租赁LED标牌采用四个护角设计，有效防止运输、安装和拆卸过程中LED的损坏，确保LED显示屏的完整性。



户外500x500mm z500租赁LED显示屏系列参数
Pixel Pitch (mm)	P2.6	P2.97	P3.91	P3.91	P3.91	P4.81
Model	EA500C6-OP2.6	EA500C6-OP2.97	EA500C6-OP3.91-16S	EA500C6-OP3.91-8S	EA500C6-OP3.91-B	EA500C6-OP4.81
Pixel Configuration	SMD1415	SMD1415	SMD1921	SMD1921	SMD1921(black)	SMD1921
Density (Pixels/㎡)	147,928	112,896	65,536	65,536	65,536	43,264
Module Resolution (Pixel)	96x96	84x84	64x64	64x64	64x64	52x52
Module Size (mm)	250x250	250x250	250x250	250x250	250x250	250x250
Driving Mode (Duty)	1/24	1/21	1/16	1/8	1/8	1/13
Cabinet Size (mm)	500x500	500x500	500x500	500x500	500x500	500x500
Cabinet Weight (KG)	7.3	7.3	7.3	7.3	7.3	7.3
Brightness (CD/㎡)	4500	4500	4800	6000	4000	4200
Viewing Angle (°)	140	140	140	140	140	140
Gray Grade (Bits)	14	14	14	14	14	14
Operation Power	AC100-240V 50-60Hz	AC100-240V 50-60Hz	AC100-240V 50-60Hz	AC100-240V 50-60Hz	AC100-240V 50-60Hz	AC100-240V 50-60Hz
Max. Power Consumption (W/㎡)	720	720	720	720	720	560
Avg. Power Consumption (W/㎡)	240	240	240	240	240	190
Frame Frequency (Hz)	≥60	≥60	≥60	≥60	≥60	≥60
Refresh Frequency (Hz)	≥3,840	≥3,840	≥3,840	≥3,840	≥3,840	≥3,840
Working Temperature (ºC)	-20～+60	-20～+60	-20～+60	-20～+60	-20～+60	-20～+60
Lifetime (Hours)	100,000	100,000	100,000	100,000	100,000	100,000
Protection Grade	IP5(front), IP54(rear)	IP65(front), IP54(rear)	IP65(front), IP54(rear)	IP65(front), IP54(rear)	IP65(front), IP54(rear)	IP65(front), IP54(rear)

The Z500 rental LED display wall supports arc installation, which can be installed internally or externally.

hybrid stitching

The Z500 and EA1000C6 boxes can be easily spliced up and down, greatly meeting the different needs of stage design.

3840Hz has a high refresh rate, high gray scale, and high brightness, bringing the ultimate viewing experience.

widely used

The Z500 rental LED display is widely used in various scenarios, including event sites, exhibitions, business meetings, etc. Its flexibility and ease of installation make it an ideal choice for temporary activities and long-term use.
