MSS-B

Mini Optoelectronics M-SS-B series (250*250) stepper/servo motor version retractable screen, wave screen, and matrix screen include six point-spacing products such as 3.9/2.9/2.5/1.95/1.5625/1.25!
Product SpecificationsDetailed DescriptionCase Showcase
Product Model MSS-B15MSS-B19MSS-B25MSS-B29MSS-B39MSS-B12
Screen Parameters
Screen Size (inches) 444444444444
Aspect Ratio 2:12:12:12:12:12:1
Usage Scenario indoorindoorindoorindoorindoorindoor
White Balance Brightness (nits) 800800800800800800
Brightness Uniformity 979797979797
Pixel Pitch 1.56251.952.52.9763.9061.25
Pixel Structure MSD1212MSD1515MSD2020MSD2020MSD2020MSD1010
Resolution 640X320512X256400X200336X168256X128800X400
Maximum Power 1250 motor + screen1250 motor + screen1250 motor + screen1250 motor + screen1250 motor + screen1250 motor + screen
Operating Power 550550550550550550
Standby Power 50w㎡50w㎡50w㎡50w㎡50w㎡50w㎡
3D Display supportsupportsupportsupportsupportsupport
HDR 101010101010
Contrast Ratio 8000:18000:18000:18000:18000:18000:1
Horizontal Viewing Angle 175175175175175175
Vertical Viewing Angle 175175175175175175
Grayscale (bit) 161616161616
Waterproof Rating IP65IP65IP65IP65IP65IP65
Seam Error
Device Weight 78KG/㎡78KG/㎡78KG/㎡78KG/㎡78KG/㎡78KG/㎡
Expanded Dimensions 1000*500* 601mmX multiple blocks1000*500* 601mmX multiple blocks1000*500* 601mmX multiple blocks1000*500* 601mmX multiple blocks1000*500* 601mmX multiple blocks1000*500* 601mmX multiple blocks
Retracted Dimensions 1000*500* 400mmX multiple blocks1000*500* 400mmX multiple blocks1000*500* 400mmX multiple blocks1000*500* 400mmX multiple blocks1000*500* 400mmX multiple blocks1000*500* 400mmX multiple blocks
Audio Configuration supportsupportsupportsupportsupportsupport
Signal Configuration supportsupportsupportsupportsupportsupport
Transmittance supportsupportsupportsupportsupportsupport
Bending Radius 444444444444
Certification 1000*500* 400mmX multiple blocks1000*500* 400mmX multiple blocks1000*500* 400mmX multiple blocks1000*500* 400mmX multiple blocks1000*500* 400mmX multiple blocks1000*500* 400mmX multiple blocks
Dynamic Configuration
Drive Method Private service electric machinePrivate service electric machinePrivate service electric machinePrivate service electric machinePrivate service electric machinePrivate service electric machine
Transmission Method CVTCVTCVTCVTCVTCVT
Rotation Layers CVTCVTCVTCVTCVTCVT
Left/Right Tilt
Up/Down Tilt CVTCVTCVTCVTCVTCVT
Extension Stroke CVTCVTCVTCVTCVTCVT
Vertical Lift CVTCVTCVTCVTCVTCVT
Lever Lift CVTCVTCVTCVTCVTCVT
Folding Function CVTCVTCVTCVTCVTCVT
Wing-spread Function
Sliding Movement CVTCVTCVTCVTCVTCVT
Seam Completion CVTCVTCVTCVTCVTCVT
Motion Limitation CVTCVTCVTCVTCVTCVT
Linear Speed 0.068 seconds0.068 seconds0.068 seconds0.068 seconds0.068 seconds0.068 seconds
Response Speed 0.001 seconds0.001 seconds0.001 seconds0.001 seconds0.001 seconds0.001 seconds
Motion Noise
Single Action Time 45dB45dB45dB45dB45dB45dB
Device Dimensions 45dB45dB45dB45dB45dB45dB
Control Protocol 485/UDP/modbus TCP485/UDP/modbus TCP485/UDP/modbus TCP485/UDP/modbus TCP485/UDP/modbus TCP485/UDP/modbus TCP
Video/Device/Screen Intercontrol optionaloptionaloptionaloptionaloptionaloptional
Human-Screen Interaction optionaloptionaloptionaloptionaloptionaloptional
Software Protocol jsonjsonjsonjsonjsonjson
Remote Key supportsupportsupportsupportsupportsupport
Controller Channels 12/36/48/9612/36/48/9612/36/48/9612/36/48/9612/36/48/9612/36/48/96
APP Control supportsupportsupportsupportsupportsupport
Rain Sensor optionaloptionaloptionaloptionaloptionaloptional
Wind Sensor optionaloptionaloptionaloptionaloptionaloptional
Light Sensor optionaloptionaloptionaloptionaloptionaloptional
Smoke Sensor optionaloptionaloptionaloptionaloptionaloptional
Multi-panel Assembly supportsupportsupportsupportsupportsupport
Panel Size (inches) MSS-BMSS-BMSS-BMSS-BMSS-BMSS-B
Tensile Strength MSS-BMSS-BMSS-BMSS-BMSS-BMSS-B

Retractable LED screen wall Retractable LED display sphere manufacturer

Retractable LEDs combine motion, content and sound, making them a true work of art. It attracts the attention of an audience in any occasion-whether it's in a lobby, a museum, an airport or a shopping mall-and its immersive presentation seamlessly combines technology and art.

Dynamic LED media art transcends the functions of traditional digital displays and turns visual expressions that were once considered impossible into reality. With this eye-catching presentation, space owners can expect to maximize their advertising revenue by providing high-quality 3D advertising space.

Retractable LEDs enhance the viewing experience by applying dynamic motion to content, providing a three-dimensional and realistic experience.

Use dynamic LED displays to enhance visual communication
In the field of vision technology, the fusion of sports and cutting-edge LED screens is not only a trend, but also a transformative evolution, particularly evident in the field of trade exhibitions and events. This innovative approach is reflected in the miracle of dynamic LED screen walls, a technology that redefines the boundaries of digital interaction and narrative.

The adaptability of the dynamic LED display is one of its most eye-catching features. Whether it's the lively atmosphere of the shopping center, the formal setting of the auditorium or the openness of the outdoor space, these displays provide unparalleled participation. This versatility makes it a powerful tool for advertising, branding and creating immersive experiences that resonate deeply with audiences.

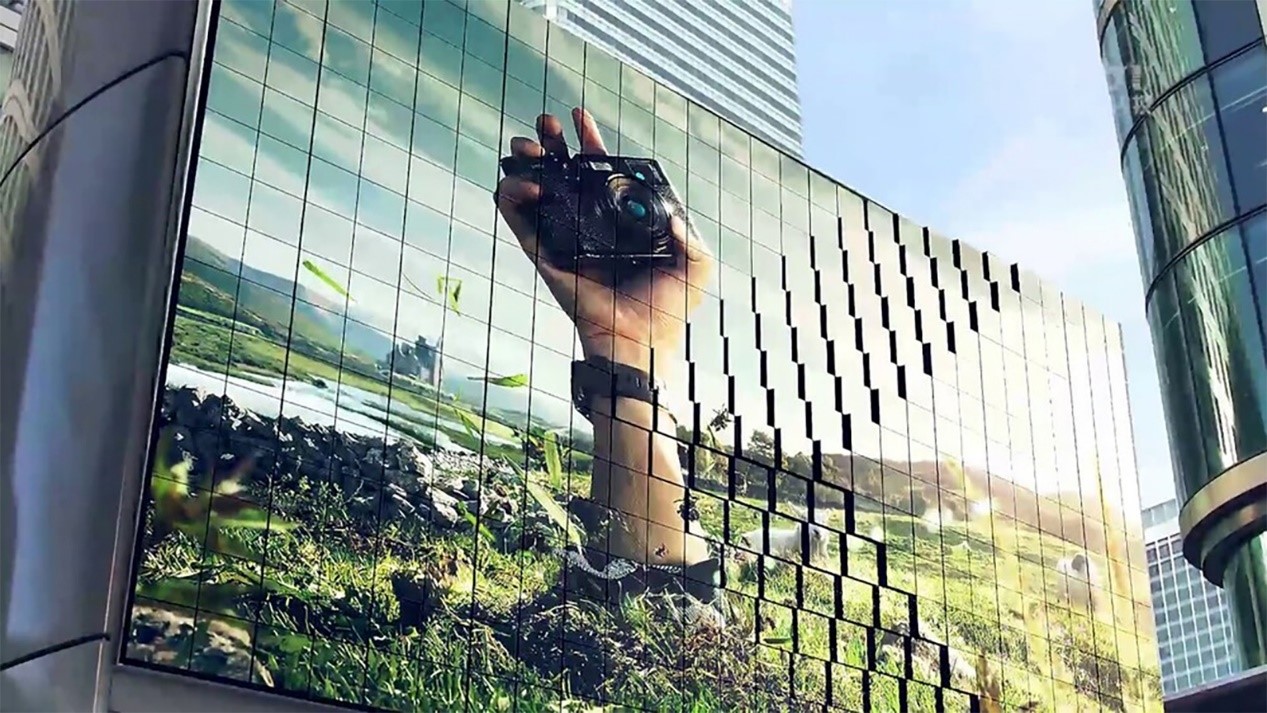

3D dynamic effects.
也称为 3D 波浪 LED 显示屏。The wall consists of hundreds of LED modules that can project up to 5000 display units moving back and forth, consistent with the visual effect on the screen. This feature offers unlimited creative possibilities and presents fascinating 3D visual effects.

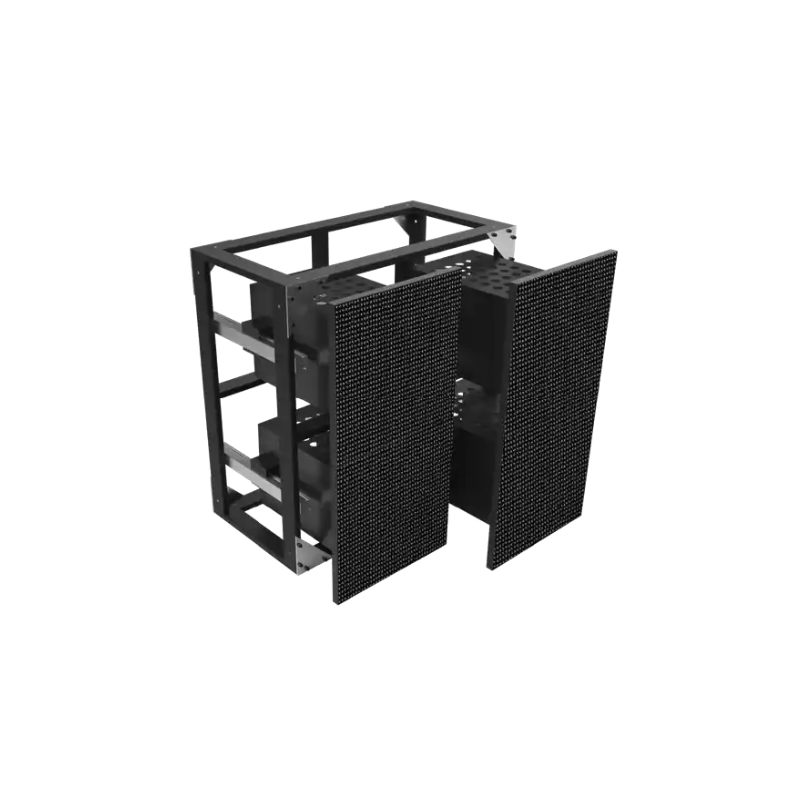

Slim and saving design,
With a minimum thickness of only 32 centimeters, our slim retractable LED displays are mounted embedded to save valuable floor space in indoor environments.

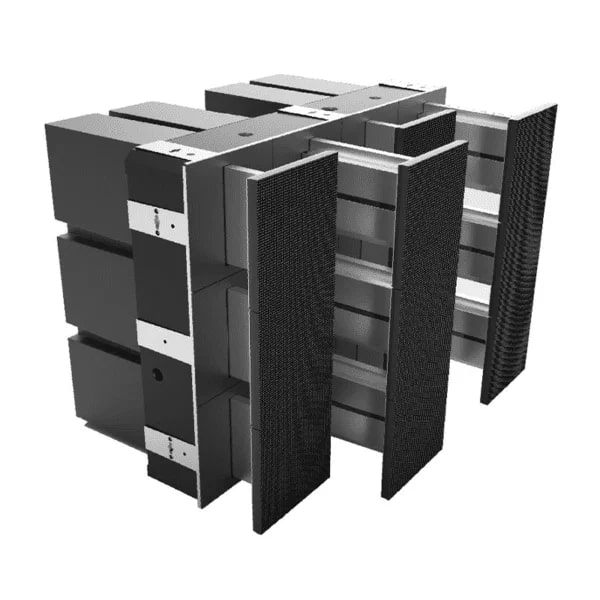

Seamless visual experience
The gap between the display modules is extremely narrow by≤ 2mm, and the precise sliding structure achieves nearly seamless retraction and retraction, bringing clear and unified visual output without" fragmentation."

easy to install and maintain
The modular design of the display allows easy installation and quick disassembly. Modules can be easily replaced, simplifying maintenance and ensuring long-term availability.

Match your existing LED display
Our company provides a comprehensive range of dynamic matrix LED displays in a variety of size to meet different project needs. Our products include small displays measuring 160 mm x 160 mm, medium displays measuring 250 mm x 250 mm (there are also 240 mm x 240 mm displays) and large displays measuring 320 mm x 320 mm.

In addition to matrix solutions, we also offer a telescoping robot system that is compatible with your existing LED tiles, allowing seamless integration and enhancing visual vitality in your installation.

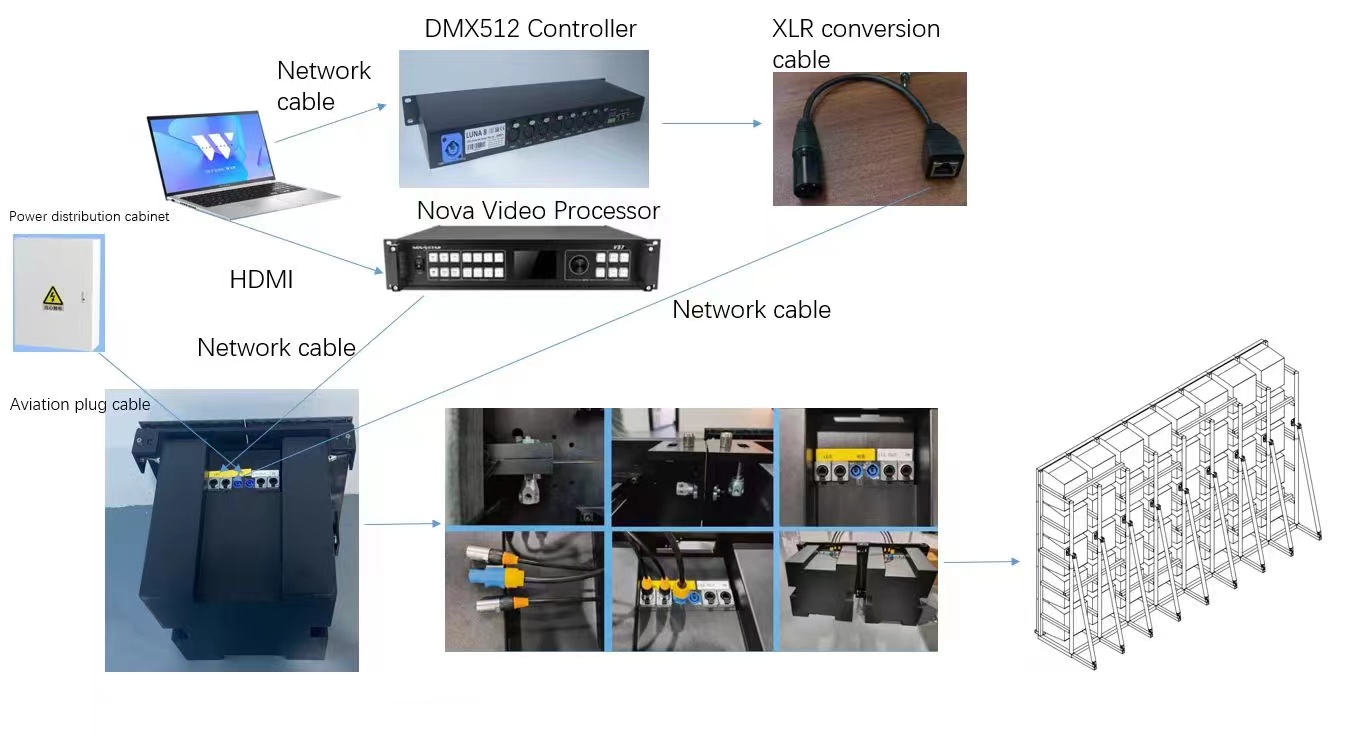

DMX512 Madrix Mechanical Systems
Integrated with advanced MADRIX software, the mechanical motion mode system enables dynamic, programmable motion of LED panels, significantly enhancing their visual appeal.

Telescopic LED display rental solution.
每两个 LED 显示屏矩阵都精心包装在航空箱中,以便安全运输和存储。The system includes a custom stacked truss designed to simplify the installation process and ensure efficient handling during installation and disassembly. This rugged truss system provides stability and support for retractable LED displays, making them ideal for dynamic and flexible mobile settings. The combination of aviation boxes and stacked trusses not only improves the ease of installation, but also ensures that the LED display can be safely and easily transported to various event locations.
